Aluminum Armoured Cable

Aluminum Armoured Cable

Overview

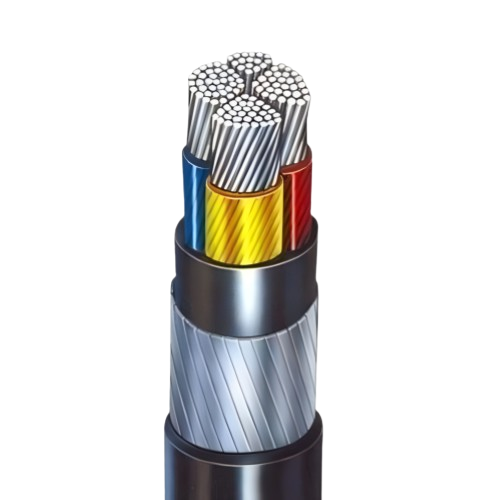

Aluminum Armoured Cable is a type of power cable consisting of stranded aluminum conductors insulated with PVC or XLPE and reinforced with a layer of steel wire or aluminum strip armouring. This armouring protects the cable against physical damage and makes it suitable for direct burial, high-load conditions, and rugged environments.

Key Features

  • Conductor: EC Grade aluminum (99.5% pure), stranded
  • Insulation: PVC or XLPE (as per IS 7098 standards)
  • Armouring: Galvanized Steel Wire/Strip (for multi-core) or Aluminum Strip (for single-core)
  • Sheath: Flame-retardant PVC outer sheath
  • Voltage Rating: 1100V (LT) or up to 33kV (HT)
  • Temperature Range: -15°C to +90°C
  • Compliance: IS 1554 (Part 1), IS 7098 (Part 1 & 2), IEC standards
  • Flame Resistance: IS 10810 / IEC 60332

Global Presence

  • Presence across major sectors, brands, and countries.
  • Transparency in all dealings.
  • World class manufacturing facilities.
  • Robust R&D Capabilities.
  • End-to-end solutions provider.
  • Visionary promoters & management.

Why Choose Us

  • Mechanical Protection – Designed for underground and outdoor laying
  • Lightweight & Affordable – More economical than copper alternatives
  • Flame-Retardant & Weatherproof – Safe for high-risk environments
  • High Current Carrying Capacity – Efficient for large-scale distribution
  • Easy Identification – Color-coded cores or number-printed options
  • Custom Options – Single-core and multi-core variants, up to 1000 sq.mm

Applications

  • Power distribution in substations and switchyards
  • Underground cabling in industrial zones
  • Commercial building electrical infrastructure
  • Street lighting, railways, and airport electrification
  • Solar power plants and utility-scale renewable energy projects
  • Water treatment facilities and oil refineries
Parameter Specification
Conductor Material EC Grade Stranded Aluminum
Insulation PVC / XLPE
Voltage Rating LT (1100V) / HT (up to 33kV)
Armouring Galvanized Steel Wire or Aluminum Strip
Outer Sheath Flame-Retardant PVC (FR/FRLS optional)
Operating Temperature -15°C to +90°C
Core Options 1 Core to 4 Core (with or without neutral)
Sizes Available 6 sq.mm to 1000 sq.mm
Standards IS 1554, IS 7098, IEC 60502, RoHS Compliant
