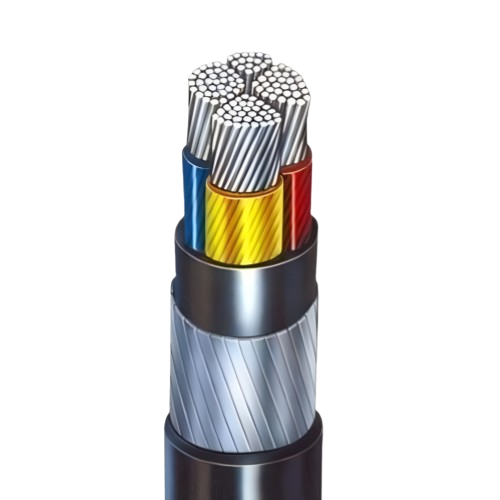

Aluminum Unarmoured Cable
Aluminum Unarmoured Cable
Overview
Aluminum Unarmoured Cables are electrical cables composed of aluminum conductors with insulation and outer sheathing, but without an additional metallic armoured layer. These cables are commonly used for fixed installations with low mechanical risk, making them a preferred choice for cost-conscious and lightweight power cabling solutions.
Key Features
- Conductor: EC Grade (99.5% pure) aluminum
- Construction: Solid or stranded as per IS 8130
- Insulation: PVC or XLPE (Cross-Linked Polyethylene)
- Sheath: Industrial-grade PVC, flame-retardant and weather-resistant
- Voltage Rating: 1100V (LT) or 3.3kV (HT) options available
- Core Options: Single Core, 2-Core, 3-Core, 3.5-Core, 4-Core
- Temperature Range: -15°C to +90°C
- Flame Retardant Properties: Compliant with IS 10810 / IEC 60332
Global Presence
- Presence across major sectors, brands, and countries.
- Transparency in all dealings.
- World class manufacturing facilities.
- Robust R&D Capabilities.
- End-to-end solutions provider.
- Visionary promoters & management.
Why Choose Us
- State-of-the-art manufacturing facilities
- Stringent quality control and testing
- Customization options available
- Quick turnaround and timely delivery
- Trusted by contractors, engineers, and builders across sectors
Applications
- Lightweight: Easier handling and installation than copper cables
- Cost-Effective: Lower material cost for large-scale power distribution
- Good Electrical Conductivity: Ideal for non-critical load circuits
- Weather-Resistant Sheathing: Withstands outdoor and industrial conditions
- Flame-Retardant Insulation: Enhanced fire safety in buildings
- Standards Compliant: IS 694 / IS 1554 (Part 1) / IEC
| Parameter | Description |
|---|---|
| Conductor Material | EC Grade Aluminum (99.5% Pure) |
| Insulation | PVC / XLPE |
| Voltage Grade | Up to 1100V or 3.3kV (depending on type) |
| Operating Temperature | -15°C to +90°C |
| Flame Retardancy | IS 10810 / IEC 60332 |
| Available Core Options | 1C, 2C, 3C, 3.5C, 4C |
| Conformance | IS 694, IS 1554, IEC, RoHS |
| Sizes Available | 2.5 sq.mm to 300 sq.mm |
