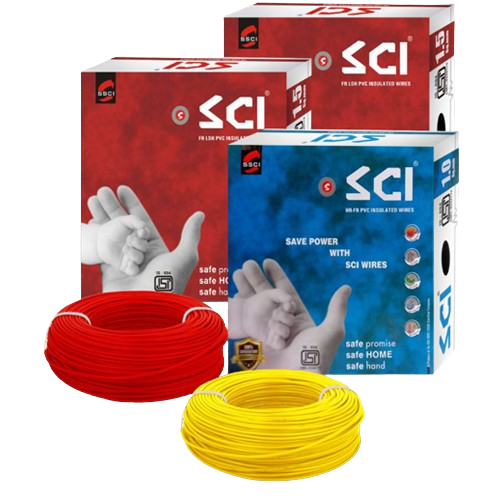

Multistranded PVC Single Core Wire
Multistranded PVC Single Core Wire
Overview
Our Multistranded PVC Single Core Wires are engineered to meet the highest standards of electrical efficiency, durability, and flexibility. Made with high-conductivity electrolytic grade copper and insulated with specially formulated PVC compounds, these wires are ideal for low-voltage electrical applications across residential, commercial, and industrial setups.
Whether you’re wiring a home, setting up a commercial building, or powering industrial equipment, our wires offer unmatched performance, safety, and reliability
Key Features
- Conductor: High-purity electrolytic annealed copper (99.97% pure)
- Construction: Multistranded for enhanced flexibility and easy installation
- Insulation: FR (Flame Retardant) / FRLS (Flame Retardant Low Smoke) / HRFR PVC as per customer specification
- Voltage Grade: Up to 1100V
- Operating Temperature: -15°C to +85°C
- Standard Sizes: 0.5 sq.mm to 16 sq.mm (custom sizes available on request)
- Colours Available: Red, Yellow, Blue, Black, Green, Grey, White, and more
- Conformity: IS 694:2010 / RoHS compliant / CE certified
Global Presence
- Presence across major sectors, brands, and countries.
- Transparency in all dealings.
- World class manufacturing facilities.
- Robust R&D Capabilities.
- End-to-end solutions provider.
- Visionary promoters & management.
Why Choose Us
- State-of-the-art manufacturing facilities
- Stringent quality control and testing
- Customization options available
- Quick turnaround and timely delivery
- Trusted by contractors, engineers, and builders across sectors
Applications
- Internal wiring of electrical panels
- Wiring of electrical appliances
- Lighting circuits
- Power distribution in homes, offices, and industries
- Automotive and battery connections (on request)
| Parameter | Specification |
|---|---|
| Conductor Material | Electrolytic Annealed Copper |
| Insulation Type | PVC (FR / FRLS / HRFR) |
| Voltage Rating | 1100V |
| Operating Temperature Range | -15°C to +85°C |
| Flame Retardancy | IS 10810 / IEC 60332 |
| Insulation Resistance | > 1 MΩ/km at 27°C |
| Standard Compliance | IS 694:2010, RoHS, CE |
