TV Coaxial Cables
TV Coaxial Cables
Overview

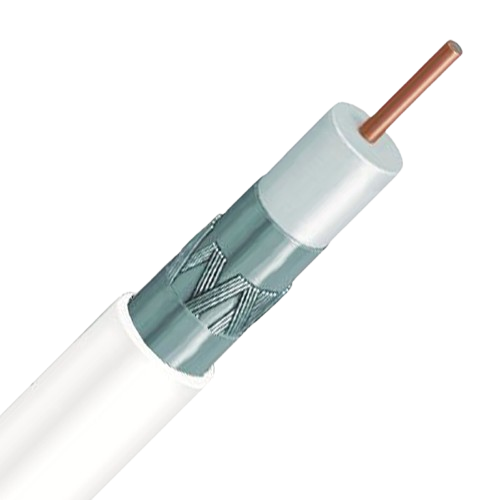

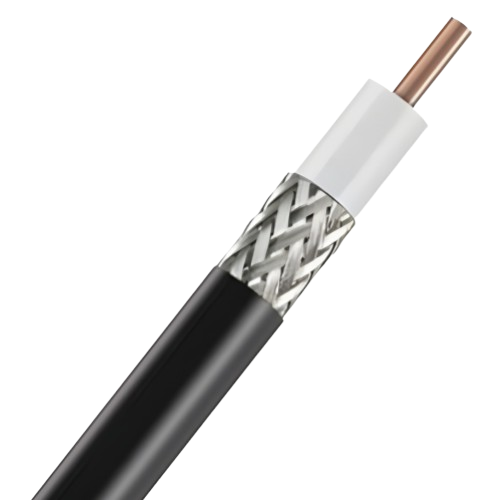

Our premium-grade TV Coaxial Cables are designed to transmit RF (Radio Frequency) signals with minimal loss and maximum clarity. They are built with a central solid copper conductor, surrounded by layers of dielectric insulation, shielding, and PVC sheathing—ensuring high-speed, noise-free signal transfer even in high-interference environments.
Key Features
- Central Conductor: 99.97% pure solid copper or copper-clad steel (as per spec)
- Dielectric Insulation: Gas-injected foamed PE for superior dielectric properties
- Shielding: Aluminum foil + 95% braided copper/aluminum for dual-layer protection
- Jacket: UV-resistant and flame-retardant PVC
- Impedance: 75 Ohm ± 3 Ohm
- Attenuation: Low signal loss over long distances
- Operating Temperature: -20°C to +70°C
- Available Sizes: RG6, RG59, RG11, or customized as per application
- Lengths: Standard coils of 90m/100m, bulk reels available for OEMs
Global Presence
- Presence across major sectors, brands, and countries.
- Transparency in all dealings.
- World class manufacturing facilities.
- Robust R&D Capabilities.
- End-to-end solutions provider.
- Visionary promoters & management.
Why Choose Us
- Premium-grade raw materials
- Automated production for consistent quality
- Bulk and customized OEM orders availables
- Strict quality control & testing procedures
- Nationwide and export-ready supply network
Applications
- Cable Television (CATV) and Direct-To-Home (DTH) Systems
- Set-top boxes and televisions
- Satellite dish connections
- CCTV and surveillance installations
- Broadband and Internet modems
- RF signal transfer in commercial AV systems
| Specification | Details |
|---|---|
| Conductor Material | Solid Copper / CCS |
| Dielectric | Foamed PE |
| Shielding | Al. Mylar + Braided Wire (Cu/Al) |
| Jacket Type | FR PVC / UV-Resistant PVC |
| Impedance | 75 Ohms |
| Frequency Range | 5 MHz – 1000 MHz |
| Capacitance | ~67 pF/m |
| Attenuation | Low (< 20 dB at 100 MHz / 100m) |
| Standards Compliance | IS 13466 / ISO / RoHS / CE |
